I. Pain Point Analysis of Traditional Transmission Solutions for Mining Equipment

1. Elastomeric Couplings:

● Stringent Alignment Requirements: High installation precision is required; even minor misalignment can lead to accelerated wear of the elastic element, increased vibration and noise, and even cause bearing damage.

● Require Regular Maintenance: The elastic element is a wear item that needs regular inspection and replacement; otherwise, there is a risk of rupture leading to unexpected downtime.

● No Overload Protection: Cannot effectively dampen shock loads; severe impact torque is directly transmitted to the motor and load, threatening equipment safety.

2. Fluid Couplings:

● Risk of Oil Leakage: Aging seals can easily lead to lubricant leakage, polluting the environment and posing a fire hazard, especially in underground coal mines.

● High Maintenance Costs: Require regular checking of oil levels, changing oil; the maintenance process is complex and costly.

● Transmission Efficiency Loss: Presence of slip means transmission efficiency is less than 100%, resulting in some energy loss.

● Limited Precision and Control Capability: Cannot achieve precise torque control.

II. Innovative Technical Principle of the Torque-Limiting Permanent Magnet Coupler

The core innovation of the Torque-Limiting Permanent Magnet Coupler lies in achieving "non-contact torque transmission." It mainly consists of two parts:

● Copper Rotor: Connected to the motor shaft.

● Permanent Magnet Rotor: Connected to the load shaft.

There is no mechanical connection between the two, only a physical air gap. When the motor drives the copper rotor to rotate, the rotating magnetic field induces eddy currents in the permanent magnets, creating a magnetic interaction that drives the permanent magnet rotor to rotate synchronously, thereby transmitting torque to the load without contact.

Its "Torque-Limiting" function is achieved through precise magnetic circuit design: when the torque on the load side exceeds a preset limit value, slip automatically occurs between the permanent magnets and the copper rotor, thereby limiting the transmitted torque to a safe range and effectively protecting the motor and equipment from the effects of stall or overload shocks.

III. Innovative Applications and Value in Mining Equipment

The characteristics of the Torque-Limiting Permanent Magnet Coupler perfectly meet the stringent demands of mining equipment.

Application Equipment	Pain Points of Traditional Solutions	Innovative Application Value of Permanent Magnet Couplers
Belt Conveyors	High starting shock, elastomeric couplings prone to damage, fluid coupling leakage.	Soft Start: Smooth starting, reducing belt tension shock. Overload Protection: Effectively limits starting torque, protecting the belt and mechanical structure. Maintenance-Free: No wear parts, no risk of oil leakage, enabling clean transmission.
Crushers/Ball Mills	Large load fluctuations, severe shock, damages couplings and motors.	Flexible Transmission: Effectively absorbs shock and vibration during material breakage. Torque Limiting Protection: Automatically slips during jams or overloads, protecting the motor and crusher main shaft. Extends Equipment Life: Significantly reduces peak stress on the drive system.
Mine Hoists	Require extremely high safety and reliability; any failure can have serious consequences.	High Reliability: Non-contact transmission, no friction or wear, very long service life. Safety Redundancy: No risk of explosion or oil leakage, enhancing intrinsic safety. Precise Torque Control: Smoother hoisting process.
Slurry Pumps/Fans	Long-term continuous operation, limited maintenance windows, require low equipment failure rates.	Completely Maintenance-Free: Design life of over 20 years, requires no maintenance. Energy Saving: Efficiency close to 100%, higher than fluid couplings. Tolerates Misalignment: Allows for greater installation misalignment, reducing installation requirements and the impact of base deformation.

IV. Comprehensive Benefits for Customers

1. Improved Operational Efficiency:

● Reduced Unplanned Downtime: Prevents unexpected production stops caused by coupling failure or oil leakage.

● Reduced Maintenance Man-Hours: Frees maintenance personnel from frequent inspection and replacement tasks.

2. Significantly Lower Total Cost of Ownership (TCO):

● Zero Maintenance Costs: Saves on consumables like elastomers, lubricants, seals, and associated labor costs.

● Extended Equipment Life: Protects core equipment like motors and gearboxes, reducing the frequency of major repairs and replacements.

3. Enhanced Production Safety:

● Inherent Safety: No high temperatures, no sparks, no oil leakage, especially suitable for environments with explosion-proof requirements like underground coal mines.

● System Protection: Excellent overload protection capability, providing "safety insurance" for the entire drive system.

V. Conclusion

As the mining industry evolves towards greater intelligence, automation, and efficiency, the demands for the reliability of basic equipment transmission are higher than ever. With its disruptive technical principle, the Torque-Limiting Permanent Magnet Coupler addresses the inherent pain points of traditional transmission solutions, enabling a shift from "scheduled maintenance" to "condition monitoring", and from "consumable" to "permanent component."

It is not merely a simple product replacement but an upgrade in transmission philosophy. It is an innovative key technology for mining equipment to achieve cost reduction, efficiency improvement, and safe and reliable operation. Choosing the Torque-Limiting Permanent Magnet Coupler means choosing durable and reliable protection for your core mining assets.

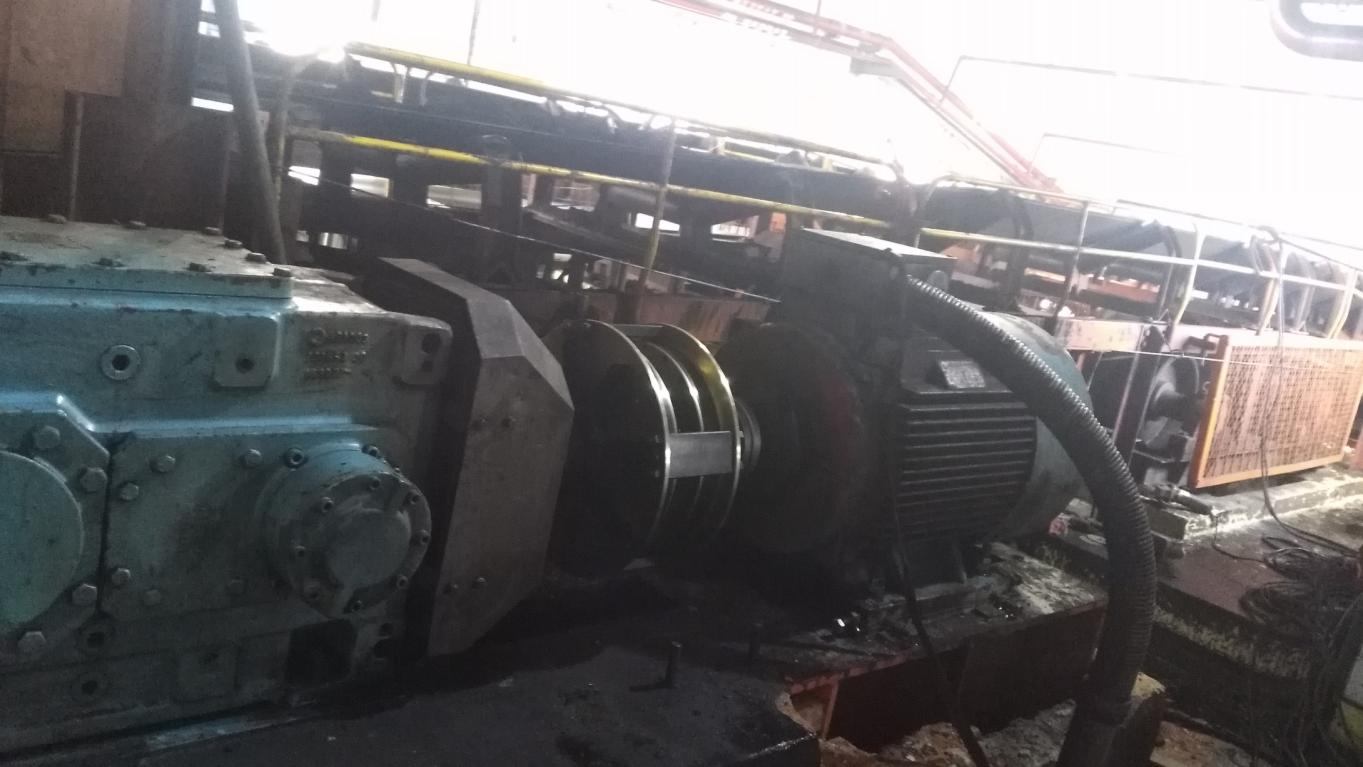

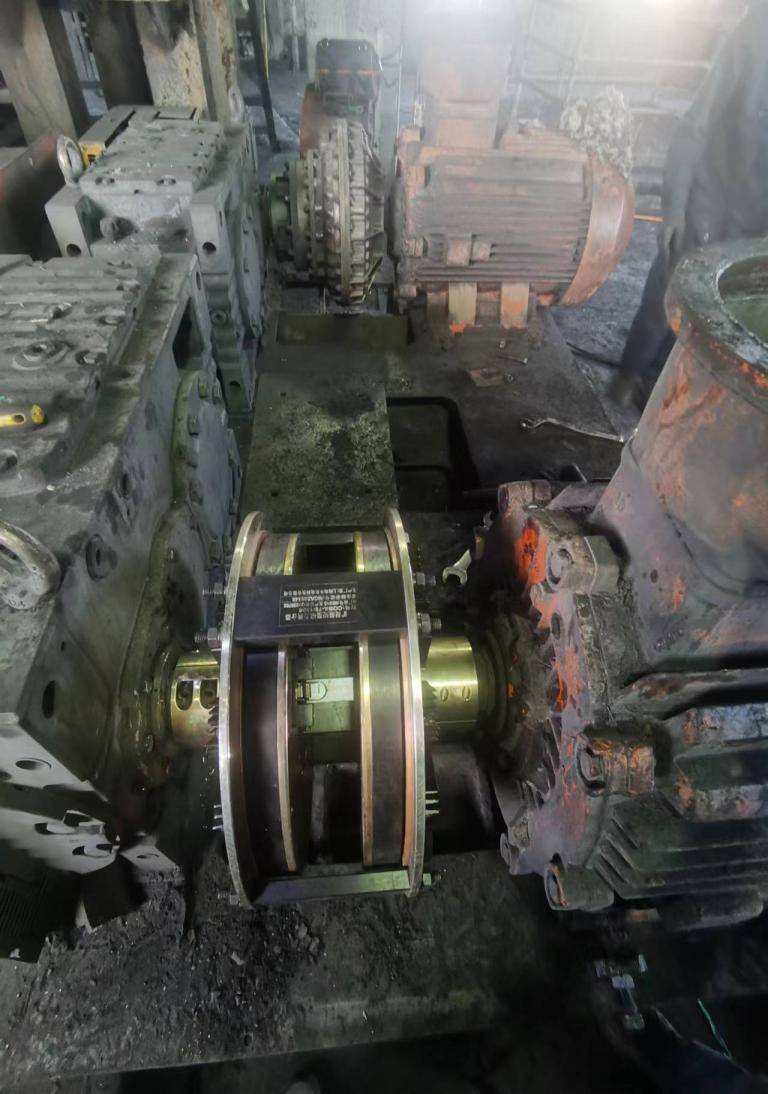

Torque-Limiting Permanent Magnet Couplers
